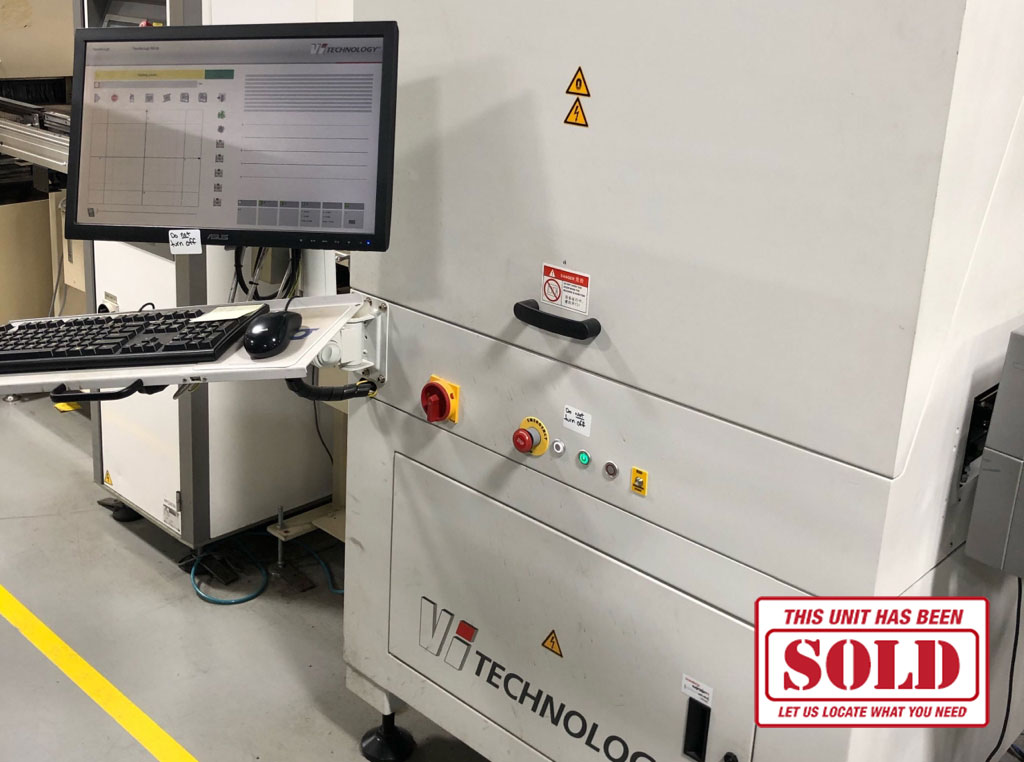

2015 Vi Technology 5K SPECTRO 2D AOI

Manufacturer: Vi Technology
Model: 5K SPECTRO 2D AOI
D.O.M.:   2015
S/N: 1506A1168
Reference No.:  305L

Specifications:

5K-Spectro Automated Optical Inspection System

  • Precision XY gantry
  • High-speed linear motors with closed-loop high-resolution linear encoders
  • Motorized conveyor width adjustment for boards up to 355 mm x 355 mm (21″ x 24″)
  • High-resolution & High-speed digital camera with 3232 x 2372 pixels – with 4.75 μm inspection resolution
  • Custom design ultra-low distortion Telecentric lens
  • Powered by SPECTRO: ViTechnology’s  new Illumination System with white axial and Tri-color peripheral high intensity LED
  • PC Intel Core I5 quad-core, 4 GB RAM, with 22 ” LCD monitor
  • Vision 64 software suite using Windows 7/64bit operating system including”
    – Synthetic model library powered by Vectoral Imaging
    – Vi-501 component inspection software, XY & Theta presence, absence, and polarity
    – Vi-530 Profiler tool (solder joint inspection & lifted lead detection)
    – OCV (Optical Character Verification)
    – MatchMaker tool for fast program creation
    – Supervisor database (for installation on customer server)
    – Library Pro for inspection quality insurance
    – Library Live update
    – Teach & Tune Assist
    – Left to left conveying capability
    – PCBRecorder tool for panel image bank recording
  • Electronic user manual
  • Call with any questions
