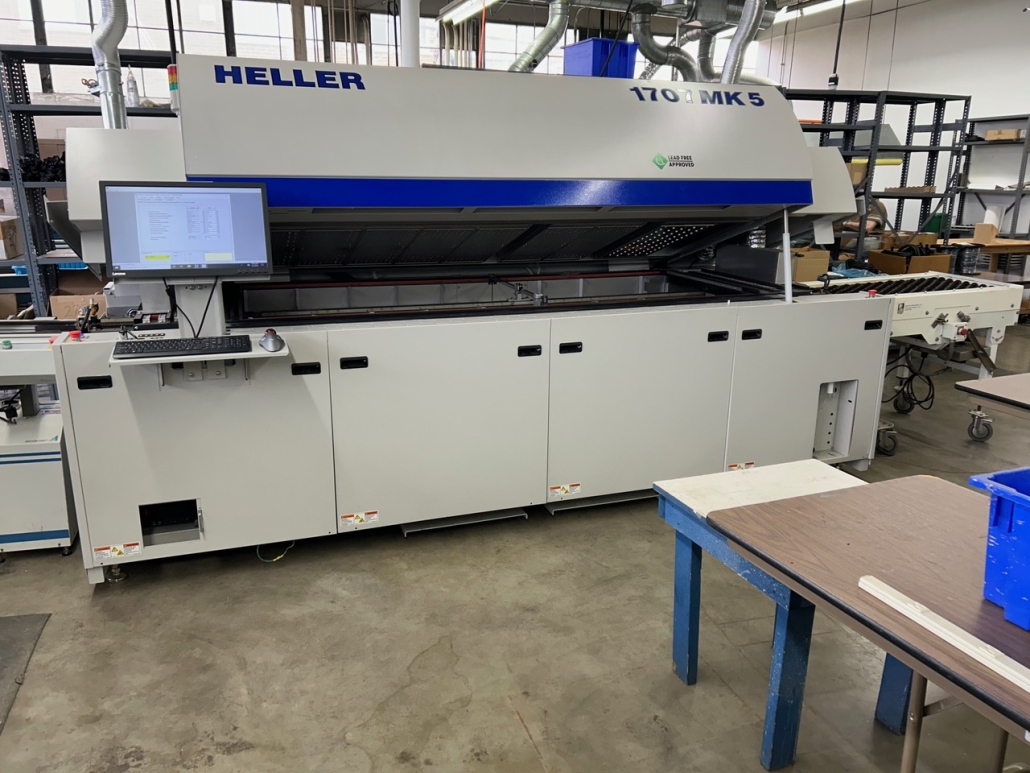

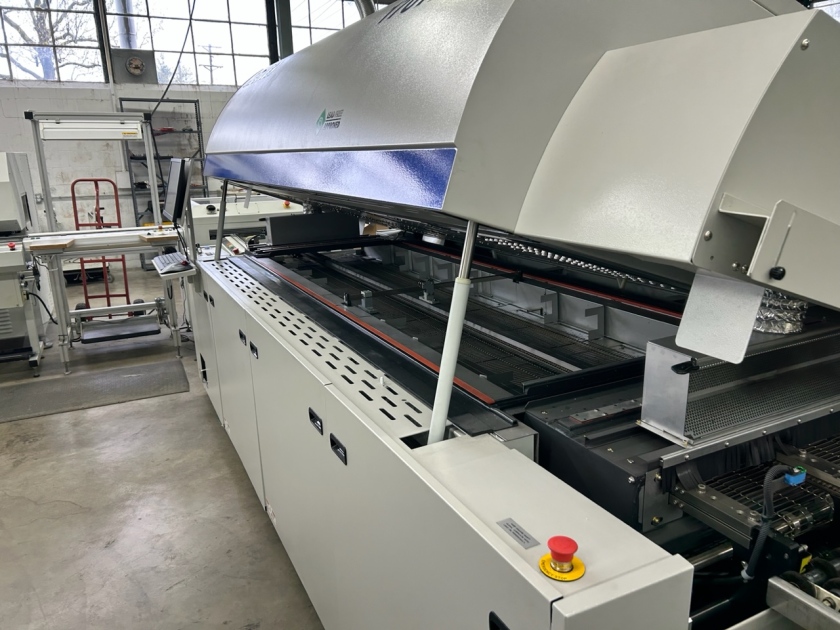

2021 HELLER 1707 MK5 REFLOW OVEN (ONLY 3,700 HOURS!)

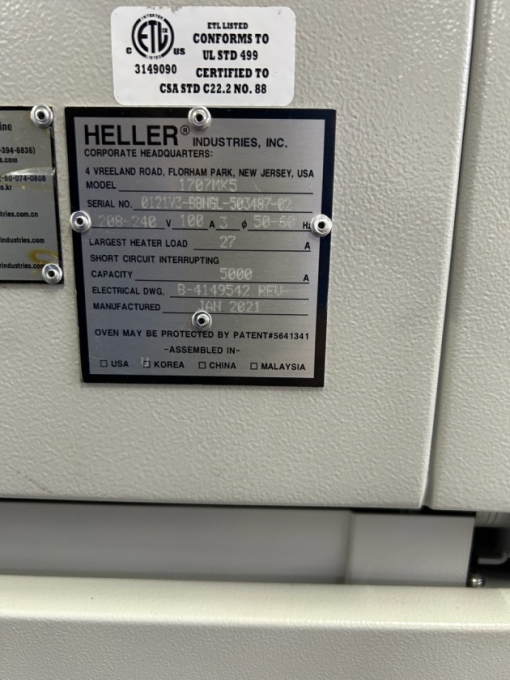

Make: Heller
Model: 1707 MK5

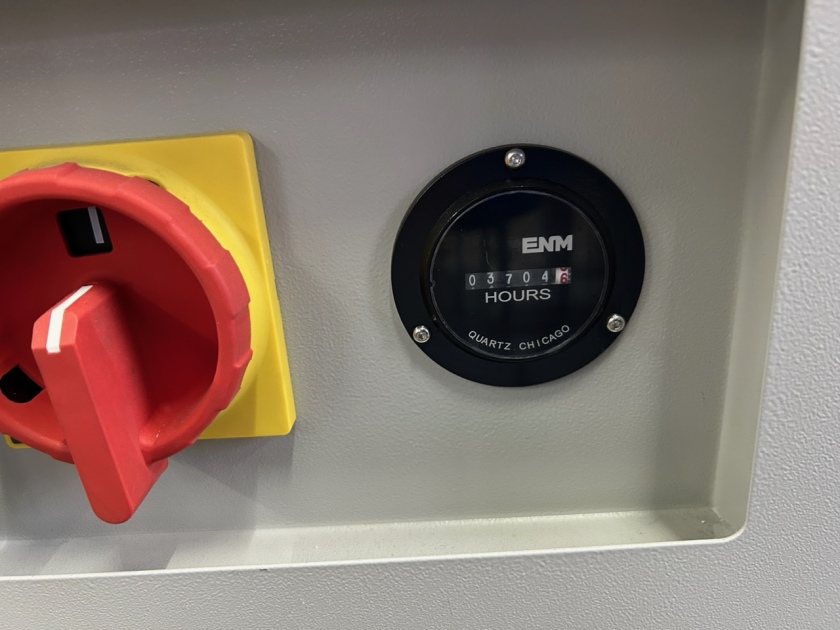

Running Hours: 3,700
DOM: 2021
Reference No.: 500L
Information:
- 2021 HELLER 1707 MK5 REFLOW OVEN
-
Item 1: Model 1707MK5

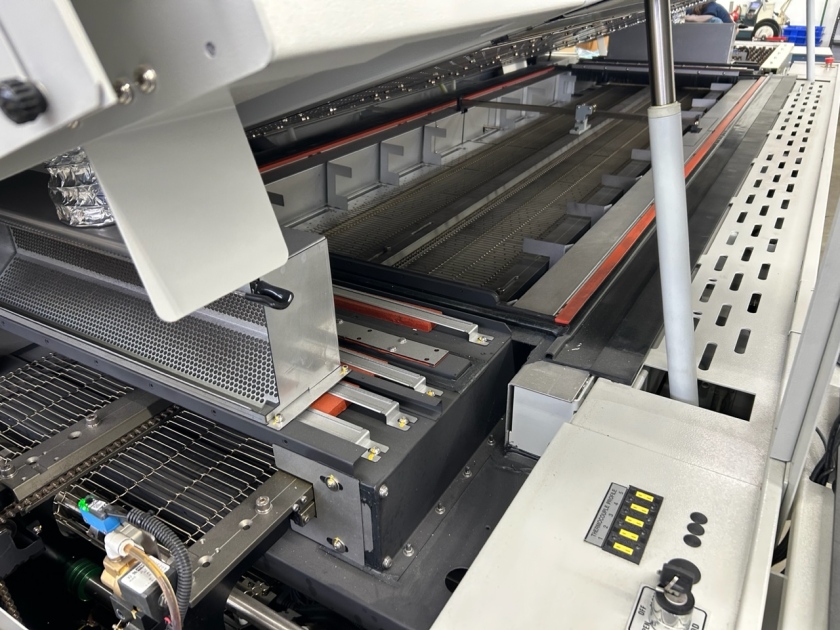

100% Forced Convection Reflow Oven with the following features and benefits:
- 22″ Wide Mesh Belt Conveyor to accommodate PCB’s up to 22″ wide
- 18” On Load Conveyor and 18” Off Load Conveyor
- 73″ Heated Tunnel Length • 1 Internal Cooling Module with 15” of Cooling
- 14 Independent Temperature Controlled 350C Semi-Circular Balanced Flow “Lead Free”
Heating Zones
- Spike Zone Design for minimal liquidus time
- Complete Computer Control System including:
- Flat Panel Color Monitor, Keyboard & Mouse support
- Complete Software Package including:
- Windows based Computer • Windows Home Edition Software
- Password Protection
- ECD CPK & SPC data and alarm logging with timed download or printout capability
- Complete KIC & ECD Profiling & Storage Software including the following features:
- 5 Thermocouple “Real Time” profiling
- Profile Storage/Overlay Software including the following features:
- Profile Graph Storage of up to 500 graphs
- Profile graph overlay of “benchmark” profile with current profile
- Profile graph phase shifting to align two graphs
- Moveable slope window providing average slope over given portion of graph
- 6 color graphics to distinguish between graphs
- PID temperature control to ensure zone temperature stability to +/- 1C
- Signal Light Tower to indicate system status
- 4 moveable casters for easy relocation around shop floor
- Power controlled Clamshell Hood Lift • Single exhaust port for easy facilitation
- 208/240V, 60 HZ, 3 phase, 100 AMPS per phase • Left to Right Conveyor Travel
- Floor space requirements: 142″L x 59″W x 63″H
- Enhanced Frame Design • Breaker Over Current Protection
- Factory training and installation • 3 Year Warranty on Heaters & Blower Motors
- Optional Lifetime Warranty on Heaters & Blower Motors
Item 1:
1707MK-17 – $49,900.00
1707MK5 Ultra Low Nitrogen & Power Consumption Reflow Oven with
Semi Circular Balanced Flow Heater Modules
Item 2:
208V-17-5 – $No Charge
Electrical Operation 208/240 volt, 100 Amps
Item 3:
EHC-CS-17 – $8,900.00
Edge Hold Conveyor (Computer Adjust) with 4.8mm / .187” long EHC Pins with Heavy Duty Overhead Trolley Center Tack System,
Front Rail Fixed – Maximum PCB with 22”
Item 4:
AL-17 – $1,625.00
Automatic Lubrication System for Edge Hold Conveyor
Item 5:
N2-17 – $11,200.00
Inert Atmosphere < 100PPM of Oxygen
(required on a nitrogen oven)
Item 6:
ULC-N2-17 – $3,975.00
Ultra Low Consumption Nitrogen – Auxiliary tunnels at entrance and exit of oven to reduce N2 consumption. Balance Flow heater modules to provide laminar flow and further reduce nitrogen consumption at 600-1200 SCFH (depending on PCB size). Tunnel will be configured for a max. PCB size of 22”
(required on a nitrogen oven) includes mesh belt.
Item 7:
WLC-FF-17 – $19,985.00
Open Loop Cyclonic Cool Pipe Water Cooling and Flux Separation System – Enhanced Blow-Thru Water Cooling Module for Ultra Low Product Exit Temperatures – Closed Loop Temperature Controlled Cooling Module for Controlling Cooling Slope – Water must be a 50/50 mixture of ethylene glycol – does not include external chiller
Item 8:
N2 ON/OFF-PC-17 – $1,350.00
Nitrogen On/Off Capability (Computer Controlled)
Item 9:
OCL-17 – $8,200.00
Open Loop Nitrogen Monitoring & Control System
Item 10:
BBU-17 – $1,350.00
Battery Back-Up of Computer, Controller, Mesh Belt & Edge Hold Conveyor System
Item 11:
SMEMA-17 – $800.00
SMEMA Sensors for Electrical Interface Up and Down Stream
Item 12:
IFSC-17 – $No Charge
Closed Loop Computer Fan Speed Control of Heater Module Blowers
(3 Groups – Top, Bottom & Reflow Zones; Speed Settings High, Medium & Low)
Item 13:
CFSC-17 – $No Charge
Closed Loop Computer Fan Speed Control of Cooling Module Blowers
Item 14:
90YWTY-17 – $No Charge
90 Day Reflow Oven Warranty, Installation & Training
Item 15:
N2D-17 – $2,395.00
Nitrogen to Air Reflow Oven Diverter to Eliminate the Chiller Requirement
Note: N2 Diverter will be installed during the installation of the oven
Item 16:
ETL-17 – $3,995.00
ETL Electrical and Safety Features to Comply Local Electrical Codes
Item 17:
35ITO-17 – $4,950.00
45MM Clearance Above & Below the Edge Hold Conveyor Pins
Item 18:
FGT-17 – $No Charge
Freight from Fremont, CA to St. Louis, MO
Item 19:
BA-17 – $No Charge
Board Animation for Tracking PCB’s Through the Reflow Oven
Item 20:
30IHM-17 – $No Charge
30” Wide Heater Modules for Processing up to 22” Pub’s on the Edge Hold & Mesh Belt Conveyor Systems
Item 21:
HCM-17 – $No Charge
Closed Loop Temperature Controlled Cooling Module for Controlling Cooling Slope
Item 22:
ECDHI-17- $No Charge
Heller Industries CPK Monitoring & Profiling System Integrated into the
Heller Reflow Oven
Heller Industries is pleased to offer the above configuration totaling $118,535.00 to you.
