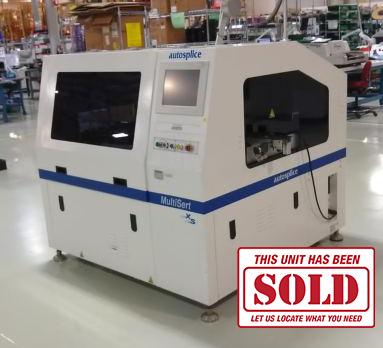

Autosplice Multisert XS Insertion System

Manufacturer: Autosplice
Model: Multisert XS
DOM: 2011
Reference No.:  350L

Autosplice Multisert XS Insertion System

MULTISERTXS HIGH-SPEED INSERTION PLATFORM – SINGLE HEAD IN-LINE WITH VISION SYSTEM

SYSTEM DESCRIPTION: MultiSertXS MIP-2 is designed for high-speed versatile manufacturing environments. MultiSert offers maximum component flexibility at rates up to 3 components per second, with an 18” x 18” work area.

Information:

  • 18” X 18” X-Y POSITIONING TABLE WITH SERVO MOTORS
  • IN-LINE MODULE
  • BASE PLATFORM AND SINGLE HEAD GANTRY
  • 1 EA. DC SERVO DRIVE TRAIN AND AMPLIFIER FOR HEAD ASSEMBLY
  • PC BASED, MULTI AXIS, PROGRAMMABLE COMPUTER CONTROLLER
  • AUTOCORRECT (BOARD ERROR CORRECTION VISION)
  • 12” COLOR FLAT PANEL, TOUCH SCREEN MONITOR
  • KEYBOARD
  • RISING POST ASSEMBLY (PCB SUPPORT)
  • SAFETY/SOUND ENCLOSURE
  • Please contact SMT Sales Group for additional information or to make an offer
