Pillarhouse Jade S-200 MKII Selective Solder Machine

Manufacturer: Pillarhouse
Model #: Jade S-200MKII
DOM: 2014
Reference No.: 368L

Information:

  • 2014 Pillarhouse Jade S-200 MKII Selective Solder Machine
  • Please contact SMT Sales Group for additional information or to make an offer

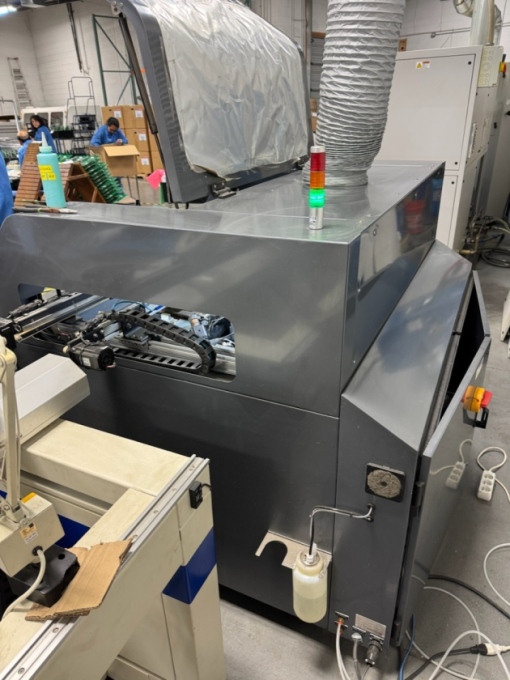

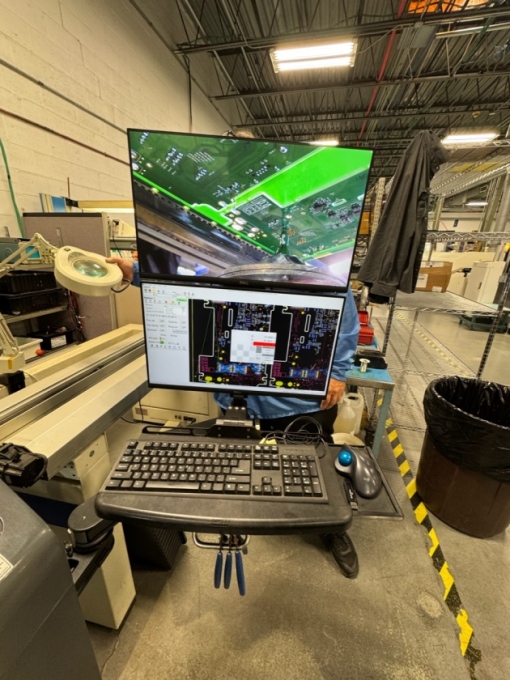

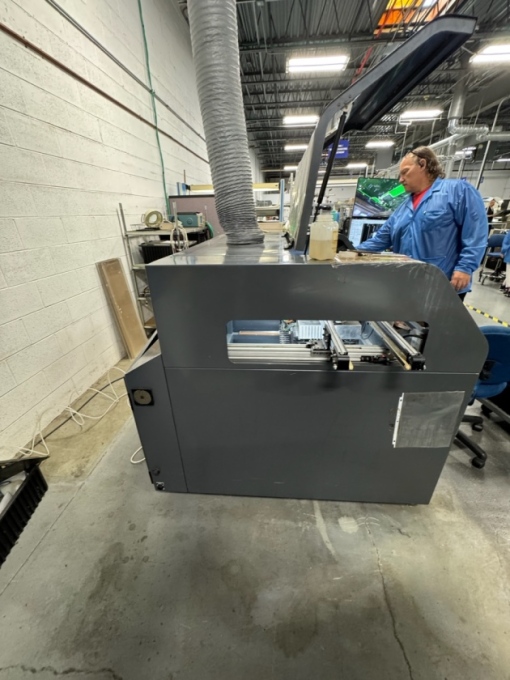

Click the images below for additional views.

Contact SMT Sales Group using the form below or email sales@smtsalesgroup.com for additional information or inquiries.

FAST response, within an hour or less.

    2019 Hentec RPS Vector 460 Selective Soldering Machine

    Manufacturer: Hentec RPS
    Model: Vector 460
    Reference No.:  313L

    Hentec RPS Vector 460 Selective Soldering Machine Specifications:

    • High performance selective soldering machine with two multi-nozzles
    • Min/Max PCB Size: 1 x 1″ to 18 x 18″
    • Perfect for mid-volume production
    • Please contact SMT Sales Group for additional information

    Vector 460 Spec Sheet

    Click the images below for additional views.

    Contact SMT Sales Group using the form below or email sales@smtsalesgroup.com for additional information or inquiries.

    FAST response, within an hour or less.

      Apollo Seiko Selective Soldering Robot

      Make: Apollo Seiko
      Model: JR2300Ne
      DOM: 2012
      Reference No.: 239NC

      Specification:
      Power – AC 90V ~ AC 164V
      Power Consumption – 166W
      Air Supply – 0.4 ~ 0.5 MPa
      Solder Wire Diameter – φ0.4 ~ 2.0 (Option: φ0.3)
      Solder Condition – 297 conditions
         Point Soldering 99
         Slide Soldering 99
         Special Soldering 99
      Temperature Setting – 0 ~ 500℃
      Heater Capacity – 200W
      Solder Step – 9 Steps
      Standby Temperature – 250℃ (Adjustable)
      Constitution
         TERRA Controller ×1
         Iron Unit (RSP/RSL) ×1
         Solder Feeder Unit (LFD) ×1
         Solder Wire Feeding Tube (TAL*.*-***S**) ×1
         Iron Cable (CC3F-1700 Standard 1700mm) ×1
         Feeder Cable (MC-1-1700 Standard 1700mm) ×1
         Air Tube Set for Iron Unit ×1
         Power Supply Cable ×1
         Iron Cartridge ×1
         Silicone Ring ×3
         Silicone Tube for Iron Cartridge Replacement ×2

      Condition: Like New Complete & Operational
      Availability: Immediate for purchase / 2-6 weeks for shipping

      Actual Machine Photos:

      Contact SMT Sales Group using the form below or email sales@smtsalesgroup.com for additional information or inquiries.

      FAST response, within an hour or less.

        2015 Pillarhouse Jade S200 MKII Selective Soldering System

        Make: Pillarhouse
        Model:  Jade S200 MKII
        Year: 2015
        Reference No.:  236NC
        Details:
        • Height: 1403mm / 55” – excluding light stack
        • Width: 1000mm / 40“
        • Depth: 1351mm / 53”
        • Board size: 457mm x 508mm / 18”x 20” (larger PCB size available upon request)
        • Edge clearance: Above / below 3mm
        • Height clearance: Above / below 40mm nominal
          Above 190mm – special application
        • Solder: Most commonly used solder types – including lead-free
        • Solder pot capacity: 8kg
        • Applicators: AP style – 2.5mm to 16mm dia.
          Extended AP style – 2.5mm to 20mm dia.
          Micro nozzle – 1.5mm to 2.5mm
          Jet-Tip style – 6mm to 20mm dia.
          Jet-Wave nozzle – up to 25mm width
          Special dedicated nozzles available upon request
        • Flux: Low maintenance Drop-Jet system. Low solids (below 8%), no clean flux, pressurised and inerted system, optional water soluble system available
        • X, Y & Z Axis resolution: 0.1mm
        • Repeatability: +/- 0.05mm
        • Nitrogen usage: 35 litres gas/min. 5 bar pressure
        • Nitrogen purity: 99.995% or better
        • Air supply pressure: 5 bar / 72 psi
        • Power supplies: Single phase + PE
        • Voltage: 208V – 250V
        • Frequency: 50/60Hz
        • Power : 4kVA
        • Power with IR preheat: 6.5kVA – Top-side
          8kVA – Top with bottom-side ring heater
        • Transport: Hand load
        • Tooling: Integral adjustable board guides, includes finger extensions and board clamps
        • Programming: PillarCOMM Windows® based ‘Point & Click’ interface
        Description

        As part of the entry-level philosophy for this system, a low maintenance solder bath and pump mechanism has been developed which moves in three axes of movement whilst not limiting access to the PCB. Solder is applied using proven technology through our AP nozzle design or custom specialized nozzles, incorporating patented spiral solder return to bath technology offering reduced solder balling potential.

        As with all Pillarhouse systems, the soldering process is enhanced by a hot Nitrogen curtain which provides an inert atmosphere. This method of soldering also assists in the prevention of oxidization and provides a local preheat to the joint, thus reducing thermal shock to localized components.

        The Jade MKII is controlled by a PC, through PillarCOMM, a Windows® based ‘Point & Click’ interface with PCB image display.
        Additionally, our PillarPAD offline package allows the operator to produce programs independently from the machine using Gerber data.




        Condition:  Complete and  Operational
        Location & Shipping:  USA / FOB Origin

        Actual Machine Photos:
