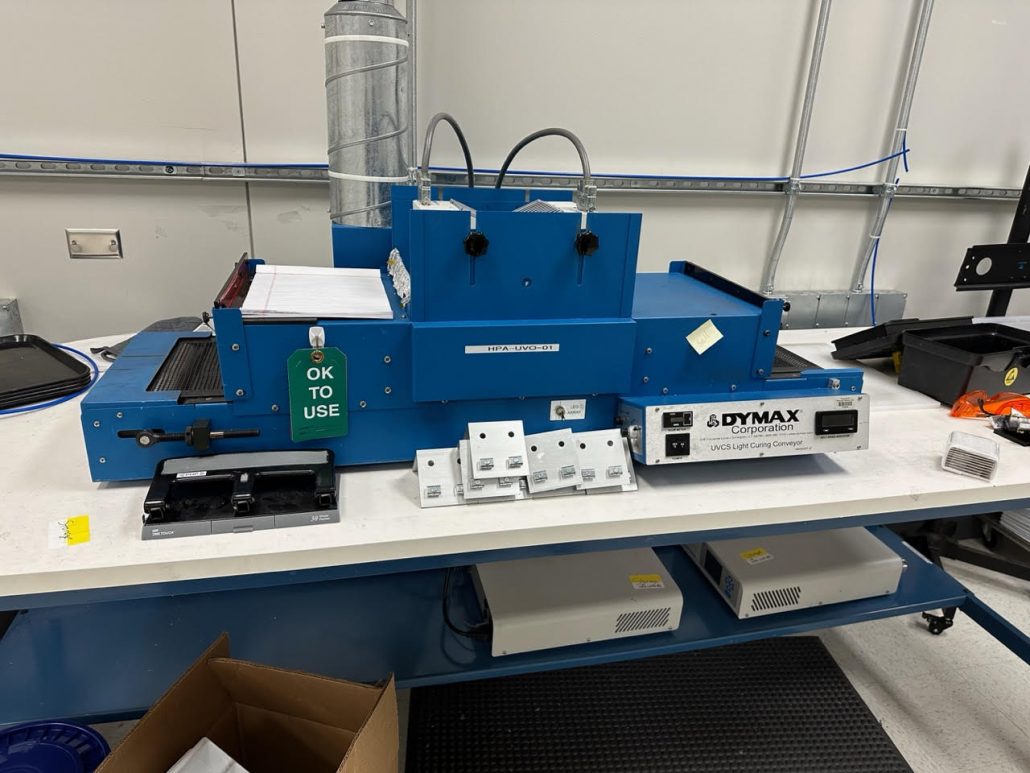

Dymax UVCS 2.0 – 12 Inch Wide UV Curing Oven
Manufacturer: Dymax
Model #: UVCS 2.0
Reference No.: 406L
Features:
- Available globally (except Europe)
- Consistent UV curing process
- Complete UV shielding
- Adjustable lamp to belt distance
- 4 in, 6 in, or 10 in vertical clearance
- Integral cooling and vacuum hold-down
- 1 to 27 fpm or 25 to 115 fpm
- Bulb life: 5,000 hours
- <2,500 mW/cm²
- Bench-top conveyor (cart optional)
Information:
Property | Specifications |
---|---|
Maximum UVA Intensity/(320-395 nm)¹ | 2,500 mW/cm² |
Maximum UVA Energy/(320-395 nm) @ 5 fpm | 2.0 J/cm² |
Line Speed | 1-27 fpm or 25-115 fpm |
Illuminated Width | 6 in (one Fusion F300) or 12 in (two Fusion F300s) |
Voltage | 220/230V (50 or 60 Hz) |
Vertical Clearance | 4 in (Standard) | 6 in (with 2 in riser, PN 39218) | 10 in (with 6 in riser, PN 39280) |
Overall Dimensions | 50.5 in L x 29.8 in W x 16.4 in H (128 cm x 76 cm x 42 cm) |
¹ | Intensity readings vary widely depending on the make and model of the radiometer. These intensities were measured with the ACCU-CAL™ 50 radiometer |
Please contact SMT Sales Group for additional information or to make an offer.
Click the images below for additional views.
