Manufacturer: iLINK
Model: End of the line loader
Reference No.: 309L
Specifications:
Click the images below for additional views.
FAST response, within an hour or less.
Manufacturer: Vi Technology
Model: 5K SPECTRO 2D AOI
D.O.M.: 2015
S/N: 1506A1168
Reference No.: 305L
Specifications:
5K-Spectro Automated Optical Inspection System
Click the images below for additional views.
FAST response, within an hour or less.
Manufacturer: TestEquity
Model: 1007H
Reference No.: 281LC

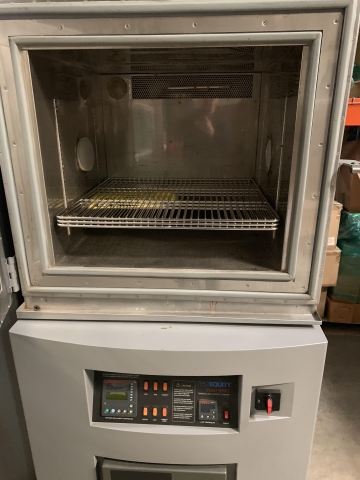

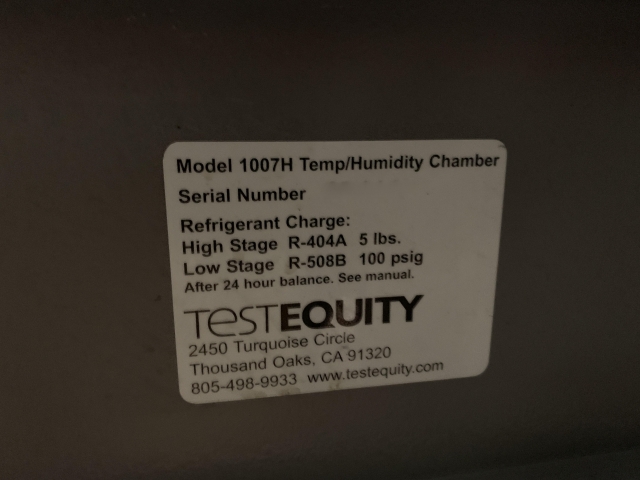

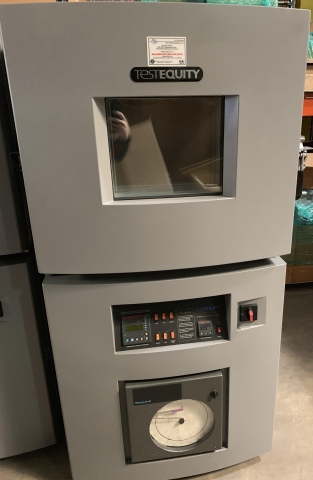

Description: TestEquity Model 1007H Temperature/Humidity Chamber
Standard Range: 10% to 95%
(Limited by a 6°C dewpoint and maximum dry bulb of +85°C)
With optional GN2 Purge or Dry Air Purge: 5% to 95%
(Dry bulb range of +10°C to +85°C)
NOTE: Ability to reach RH extremes may be limited by the humidity sensor accuracy. Low Dew Point conditions can only be achieved when starting with a clean, dry chamber.
| Cool Down Transition Time* (uncontrolled humidity mode) | ||||||
| Start Temp | End Temp | |||||
| +23°C | 0°C | -40°C | -55°C | -65°C | -73°C | |
| +23°C | —– | 4 min | 18 min | 25 min | 33 min | Ultimate |
| +50°C | 5 min | 11 min | 27 min | 36 min | 45 min | Ultimate |
| +85°C | 13 min | 20 min | 37 min | 47 min | 55 min | Ultimate |
| +150°C | 32 min | 39 min | 58 min | 65 min | 76 min | Ultimate |
| Heat Up Transition Time* (uncontrolled humidity mode) | ||||||
| Start Temp | End Temp | |||||
| +23°C | +50°C | +85°C | +125°C | +150°C | +175°C | |
| +23°C | —– | 1.5 min | 7 min | 14 min | 20 min | 25 min |
| 0°C | 1.5 min | 3.5 min | 13 min | 20 min | 23 min | 31 min |
| -40°C | 6 min | 11 min | 17 min | 24 min | 30 min | 35 min |
| -55°C | 8 min | 13 min | 19 min | 26 min | 32 min | 37 min |
| -65°C | 10 min | 14 min | 21 min | 28 min | 34 min | 39 min |
Rate Of Change
To calculate rate of change for a particular condition, take the difference between the Start Temp and End Temp and divide by the Transition Time.
Cool Down Example: From +50°C to -40°C = 90°C / 27 min = 3.33°C/min.
Heat Up Example: From -40°C to +50°C = 90°C / 11 min = 8.18°C/min.
*Note: Transition times are measured after a 2 hour soak at the respective start temperature with an empty chamber, as indicated on the temperature controller, 23°C ambient. Measured with setpoint beyond the start and end temperatures. Does not include the effect of proportional band when approaching setpoint. Performance is reduced by 17% with 50 Hz input power.
| Live Load Capacity (uncontrolled humidity mode) | |||||
| +23°C | 0°C | -40°C | -55°C | -65°C | |
| 1,000 Watts | 800 Watts | 500 Watts | 400 Watts | 300 Watts | |
| Refrigeration and Heating System | ||
| High Stage Refrigerant | R-404A (Dupont HP-62) | |
| Low Stage Refrigerant | R-508B (Dupont SUVA-95) | |
| Compressors | 1.5 HP x 1.5 HP Tecumseh hermetic compressors in a cascade configuration. | |
| Condenser | Air Cooled | |
| Heat of Rejection | 14,800 BTUH (maximum rated chamber load at maximum cooling rate from high temperature soak) | |
| Air Heater Power | 2,000 Watts | |
| Humidifier Heater Power | 1,500 Watts (rating at 240V) | |
| Air Flow | 450 cfm | |
| Instrumentation | ||
| Temperature Controller | Watlow F4T Touch Screen Controller with RS-232, Ethernet interface, 4.3″ color graphic touch screen. OR… Watlow F4 Controller with RS-232 interface, LED readout of temperature, LCD display of other parameters. |
|
| Limit Controller | Independent high and low temperature limits. Triggers an audible alarm and shuts down the chamber. Relay contacts provide a safety power interlock for test sample. | |
| Chart Recorder | (Optional) Honeywell DR4300 Series. One pen, 10″ circular chart. Mounts in lower front door. |  |
| Input Power Requirements | |||
| Phase | Current Draw | Minimum Service | |
| 230 V ±10%, 60 Hz | 1 PH | 25 A | 30 A |
| 3 PH | 19 A | 25 A | |
| 208 V -5/+10%, 60 Hz | 1 PH | 28 A | 35 A |
| 3 PH | 21 A | 30 A | |
Input may be configured for single or three phase in the field by changing jumpers. Three phase load is semi-balanced. Call for other voltages or 50 Hz operation. Performance is reduced by 17% at 50 Hz.
Customer power source must be hard-wired to the chamber by a qualified electrician. Power cord and plug is not included.
| Humidity Water Requirements | |
| Supply and Drain | Must be provided with a water line and floor drain. Negligible consumption. |
| Water Recirculation System (optional) | Provides a reliable supply of filtered water for the humidity system. Perfect for installations where a water line and drain are not available. |
| Physical Characteristics and Safety | |
| Inside Dimensions | 24″ W x 21″ H x 24″ D (7 cubic feet) 609 mm W x 533 mm H x 609 mm D (198 liters) |
| Outside Dimensions | 33″ W x 68.75″ H x 54″ D (nominal) 838 mm W x 1746 mm H x 1372 mm D |
| Door latch adds 3″ to width on right side (may be removed to permit move-in through a 36″ doorway). Circulator motor and housing adds 6″ to height. | |
| Minimum Installed Clearance | 18″ from the left and right side 24″ from the rear |
| Window Viewing Area | 13.375″ W x 9″ H |
| Access Ports | 4″ Port on left and right side (two total) Supplied with foam plugs |
| Weight | Chamber Weight: 890 pounds Shipping Weight: 1,058 pounds |
| Sound Level | 62 dBA in cooling mode (A-weighted, measured 36″ from the front or side surface, 63″ from the floor, in a free-standing environment) |
NOTE: Performance is typical and based on operation at 23°C (73°F) ambient and nominal input voltage. Designed for use in a normal conditioned laboratory. Operation at higher ambient temperatures may result in decreased cooling performance. Additional ports and shelves will also affect performance. Operation above 30°C (85°F) or below 16°C (60°F) ambient is not recommended.
Contact SMT Sales Group for additional details.
FAST response, within an hour or less.
Manufacturer: Simplimatic
Model: 3101L
DOM: 2011
Serial No: M261670
Reference No.: 279LC
Description: Simplimatic 3101L Wave Solder Pallet Return System.
Contact SMT Sales Group for additional details.
FAST response, within an hour or less.
Manufacturer: Simplimatic
Model: Entrance Conveyor
Reference No.: 277LC
Description: Simplimatic Wave Entrance Conveyor
This conveyor is a drop and tilt wave entrance conveyor.
Contact SMT Sales Group for additional details.
FAST response, within an hour or less.
Manufacturer: CTI
Model: 90 Degree Turn Conveyor
Reference No.: 274LC
Description: CTI 90 Degree Turn Conveyor
Contact SMT Sales Group for additional details.
FAST response, within an hour or less.
Manufacturer: Simplimatic
Model: 1 Meter Workstation Conveyor
Reference No.: 272LC
Description: This is a 1 Meter Simplimatic workstation conveyors (2 Segment) with inspection
FAST response, within an hour or less.
Manufacturer: CyberOptics
Model: QX-600L (L = Large Board Handling)
Year: 2013
Reference No.: 268LC
Description: 2013 CyberOptics QX-600L in pristine condition.
Download Brochure
Specifications:
Inspection Speed
200cm²/sec
Board Length (without re-inspection)
QX600-L: Min. 50 mm (2 in.)/ Max. 470 mm†† (18.5 in.)
Board Width
QX600-L: Min. 50 mm (2 in.)/ Max. 510 mm (20.0 in.)
Component Height Clearance (max)
(QX600 and QX600-L)
Top: 35mm (1.378 in.)
Bottom: 25mm (0.984 in.)
Resolution
12 μm pixel size
Notes:
With re-inspection support, the board length can be extended to 550 mm (21.6 in.) using a conveyor extension kit
Board length can be increased to 770 mm (30.3 in.) with integrated conveyor extension. With this setup, the line length will be 1700 mm (66.9 in.)
